Industrial Pre-heat Ceramic Pad Heater

FOB Price:

US 17-30 / Piece

Min.Order Quantity:

5 Piece/Pieces

Supply Ability:

1000 Piece/Pieces per Week

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram,Escrow

Brand:

Laiyuan

Products Model:

Ly-FCH-15070

Products Details
Company Profile

Quick Details

Brand Name: Laiyuan

Model Number: Ly-FCH-15070

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: Foam & Carton Box & Wooden box for Industrial Pre-heat Ceramic Pad Heater
Delivery Detail: Within 5-7 Days for Industrial Pre-heat Ceramic Pad Heater

Specifications

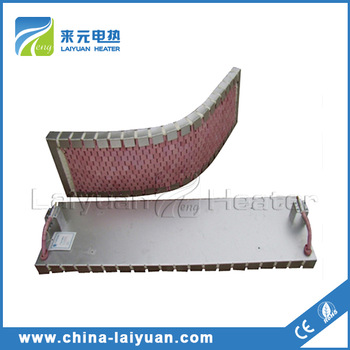

Industrial Pre-heat Ceramic Pad Heater

Product Description

Industrial Pre-heat Ceramic Pad Heater are manufactured by weaving multi-stranded 80/20 Nichrome electric resistance heating wirethrough passages within interlocking ceramic beads. The beads are molded from sintered 95% Alumina ceramics, more that 3/8-inchthick. The Alumina has excellent high-temperature dielectric properties which combined with the interlocking bead design provideFCP heaters with exceptional electrical insulating qualities.

The interlocking bead design imposes rigidity along the heater length while allowing flexibility along the heater width, enabling it toconform to the curved surfaces of pipes and pressure vessels. A nominal nine-inch length of nickel wire is welded to each end of theNichrome wire to create a cold tail to prevent the electrically insulated camlock connectors from being heated.
FCP heaters are generally available to two standard values: 80VAC, which are the most common, and 60VAC. Custom designedheaters, however, can also be provided. All 80VAC heaters are rectangular with a surface area of 120 square inches and a thermalpower of 3.6 kW, producing a power density of 30 W/in2with an electrical current of 45 amps. The 60VAC counterparts are simplythree-quarters the size of an 80VAC pad with a surface area of 90 square inches and a 2.7 kW thermal power but with the samepower density and electric current. All 80VAC heaters can be run on 60VAC, but their kW output is reduced from 3.6 to 2.

CHARACTERISTICS & PROPERTIES:

Voltage (V)	80
Current (A)	45
Power (kw)	2.7
Maximum Use Temperature*, °C (°F)	1121 (2050)
Heating Element Type	Ni-Cr
Lead Length (in.)	~24
Insulator Type	Aluminum Oxide
Insulator Color	Pink

Photos of products

Certification

Packaging & Shipping

Company Information

FAQ

1.Laiyuan is Factory or Trade enterprise?

Laiyuan is an enterprise incorporating Factory and Trade .

2.Where is your factory located? How can I visit there?

Our factory is located in Yancheng City, Jiangsu Province, China .

It is closed to Shanghai ,only 4hours by bus.

3.Which Certificate of your product does your company have?

ISO9001,CE,ROHS.CCIC
4.Before order, we need sample for test ,is it ok?

Yes, of course. We provide sample for test before bulk order.

5.How does your company to control your product quality?

Quality is the cornerstone of the survival and development of Laiyuan .

We control quality from the beginning to the end all the time.

6.How to contact me ?

Whatsapp: +86-13814314594 Phone:+86-13814314594

Skype:nurse-chen AT hotmail.com E-Mail.: sales002ATchina-laiyuan.com

Contact Information

Yancheng Laiyuan Electric Equipment Co.,Ltd. lies in beautiful city of Yancheng, Jiangsu China. We specialize in electric heaters, including Heating Resistance Wires, Band heater, Bobbin Heater, Heating Part for Hot Air gun and other heating elements.

Laiyuan is by virtue of Electric Technology has a wealth of production experience , Professional Technical Force, a strong R&D department and a dedicated team , to adapt to the market economy competition and technology requirements more than 10 years.

Yancheng Laiyuan has won praises for rapid development, scientific management method and perfect sales service. We possess a wonderful fame both at home and abroad. We are known for our innovative products and are continually introducing new and exciting products. Continual improvement is a by-word within our company and we are always looking for ways of improving our existing products in addition to developing new ranges.

'QUALITY WITHOUT COMPROMISE', Laiyuan has always been the product quality as enterprise life, therefore we always have effort, and ultimately create the perfect Laiyuan brand .
